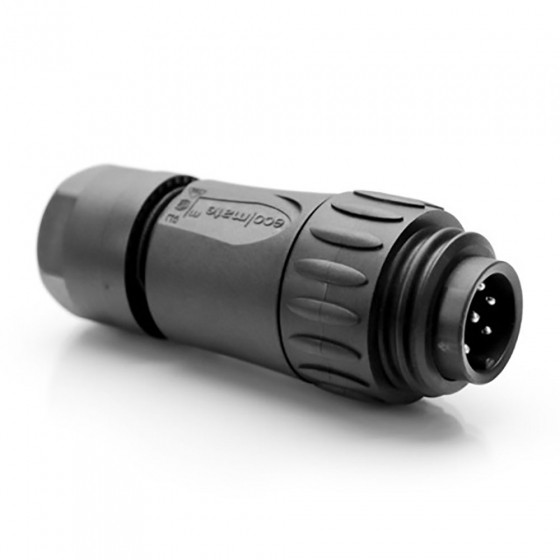

Amphenol C01630H00611012 Ecomate Connector | Male | Recht | Soldeer | Silver Plated | Zwart
€ 11,79
Op voorraad
-
- Op werkdagen vóór 17u, morgen in huis
- Gratis verzending boven €15,-
- Deskundige klantenservice
- Groot Assortiment
- Niet goed? Geld terug!
Omschrijving
Amphenol C01630H00611012 Ecomate Connector | Male | Recht | Soldeer | Silver Plated | Zwart
- Protection class IP67 in mated condition in accordance with DIN EN 60526
- Pre-loaded ground contact
- Screwed cable gland with clamping ring + internal strain relief
- The program is compatible with the C16-1 series (RD24 series)
Connector type: RD24(C16)
Gender: Male
Connector design: Axial
Max. wire gauge (AWG):18AWG
Min. wire gauge (mm²):0.05mm²
Max. wire gauge (mm²):0.75mm²
Contacts: 7
Contact diameter:1.6mm
| SKU | 35847155 |
|---|---|
| Merk | Amphenol |
| Merk artikelnr. | C01630H00611012 |
| EAN | 8716065421897 |
| Gender | Male |
| Connector design | Recht |
| Aantal polen | 7 |
| Contactoppervlakte | Silver plated |
| Aansluittype | Soldeer |
| Kleur behuizing | Zwart |
| Materiaal behuizing | Thermoplastic |
| Vergrendeling | Schroefbaar |
| Beschermingsgraad | IP67 |
| Nominale stroom | 14 A |
| Nominale spanning | 250 V |
